Siboasi Popular Model B5 Badminton playing machine for How To Use :
.
.
| Model: | B5 Automatic badminton serving machine | Packing measurement: | 68*34*38cm/34*26*152cm/58*53*51cm |
| Machine Net Weight: | 26 KGS | Packing Gross Weight | Total packed into 3 ctns: 54 KGS |
| Power (Electricity): | AC POWER in 110V-240V | After-sales service: | Siboasi after-sales department to solve |
| Power (Battery ): | Rechargeable battery for this model, lasing about 3 hours per full charging | Color : | Black /Red color |
| Machine size: | 122cm *103cm *300 cm | Warranty: | 2 years Warranty for all our models |
| Frequency: | 0.7-7 second/per ball | Lifting system: | Manual |
| Ball capacity: | About 180-200 pcs | Max.Power : | 230 W |

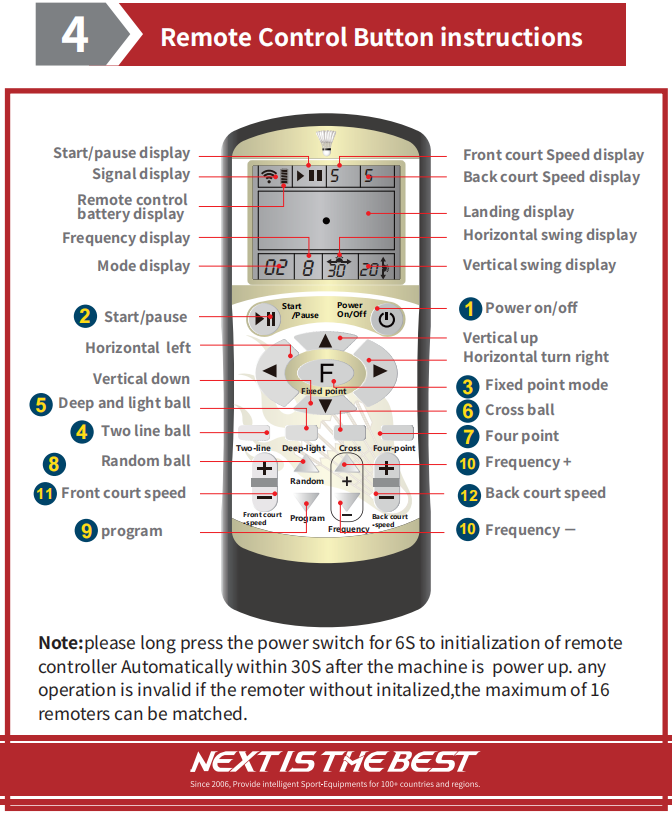

Remote control introduction for B5 badminton shuttlecock training equipment below for you to check :
.
.
1.Power button：
Long press switch button for 3s to start, 3s to turn off.
2.Start/Pause button：
Press once for pause, once again for re-work.
3.Fixed mode F button：
(1)Press “F” button to enter into fixed point mode,1 default point ;
(2) Long press F button for 8 seconds to restore the parameters as the
factory’s original settings.
4.Two-line：Short press the “Two-line” button on the remote control. Press
once: medium two-line ball; press twice: wide two-line ball ; (note: horizontal
angles are not adjustable).
5.Deep-light：Short press the “Deep-light” button on the remote control,
vertical deep-light ball. ( Note: Vertical angles cannot be adjusted.)
6. Cross：Short press the “Cross” button on the remote control. The first press:
medium shallow left deep ball; the second press: medium shallow right deep
ball; the third press: left deep right shallow ball ; the fourth press: left shallow
right deep ball.
7.Four-point：Short press the “Four-point” button on the remote control.
Press once: medium square ball; press twice: wide square ball.
8.Random：Short press the “Random” button on the remote control, press
once: seven points random serve horizontally; press twice: 21 points random
serve in the whole court (Note: ① Horizontal random: the horizontal angles
cannot be adjusted; ② Random in the whole court: both horizontal and vertical
angles cannot be adjusted).
9.Program：(1) Short press the “Program” button on the remote control to
switch to the default 5 sets of programming settings. The serving speed and
ball frequency can be adjusted. (2) Long press the “Program” button on the
remote control to enter the custom programming mode, and you can program
the 21 landing points in the court at will. Press the “▼▲◀▶” key to move the
landing point position. Press the “F” key to confirm. Press again to increase the
number of single landing points (up to 5 balls). Long press the “F” key for 3
seconds to cancel the current single drop point. Long press the “Program”
button for 3 seconds to cancel all current landing points. Press the “Program”
button to save and exit the programming mode.
10.Frequency +/-：adjust the ball interval time. (1-9 gears adjustable for
fixed-point balls and two-line balls, and 1-6 gears adjustable for other modes.)
11.Front-court speed +/-：adjust the front-court serve speed, 1-3 gears adjustable.
12.Back-court speed +/-：adjust the backcourt serve speed, 3-5 gears adjustable.
..

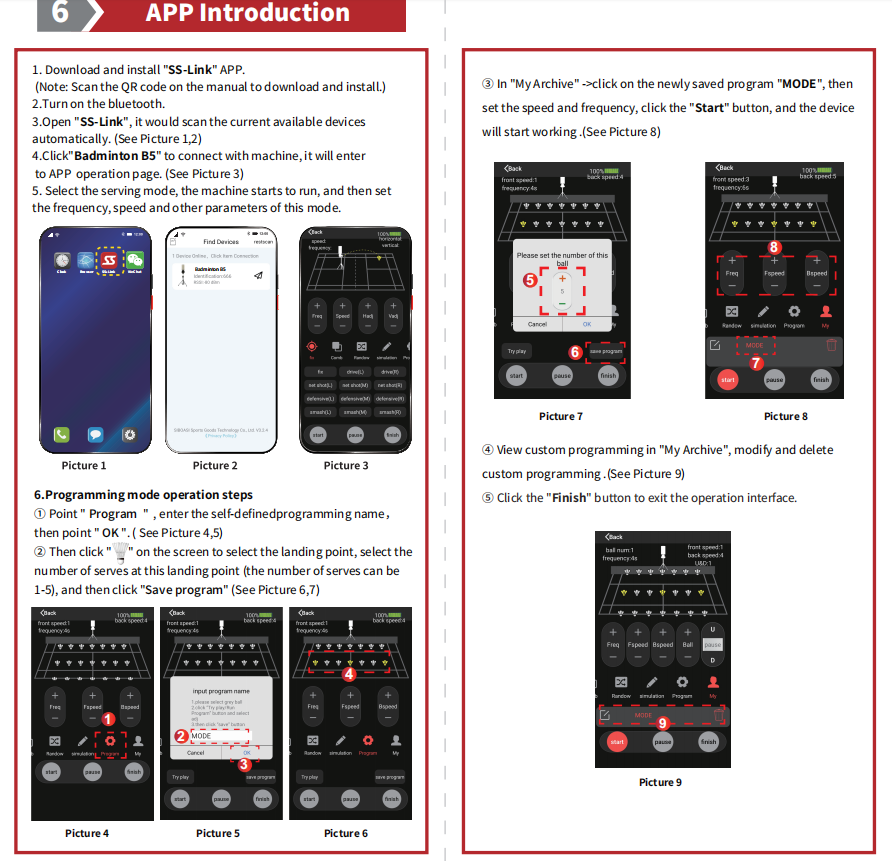

App control introduction for B5 badminton shuttlecock feeder below for you to check :
.
Notice :
.
▲ Do not repair the machine or change the machine
parts at will, otherwise the machine will be damaged
or serious accidents will be caused.
▲ Do not use wet balls or damaged balls, otherwise the
machine will get stuck or damage the machine.
▲ If hit the ball into the machine accidentally,turn off the
power right away and then take out the ball.
▲ It is forbidden to stand at the ball outlet when the
machine is working.
▲ Do not move the machine while it is working.
▲ It is forbidden to touch the inside of the machine by
hand to avoid accidents.
▲ Be sure to cut off the power when cleaning the
machine, otherwise maybe cause danger.
▲ Minors are strictly prohibited from operating the
machine without permission to avoid endangering
personal safety and damaging the machine.
▲ It is forbidden to tear up the machine bar code.
.
Caution: If maintenance is required, please contact manufacturer
